Star plate wanted


  • Please log in to reply
18 replies to this topic

#1 Arthur Brown

Arthur Brown

    General member

  • UKPS Members
  • 2,907 posts

Posted 14 May 2015 - 01:29 PM

I'm looking for a star plate for small stars 2, 3, 4 or 5mm. Does anyone have anything to sell to me please.


http://www.movember.com/uk/home/

Keep mannequins and watermelons away from fireworks..they always get hurt..

#2 AdmiralDonSnider

AdmiralDonSnider

    Member

  • General Public Members
  • PipPip
  • 152 posts

Posted 28 June 2015 - 07:52 PM

Arthur, as I´m currently after a plate for small core stars, I can tell you that Wolter offers them, at least down to 3mm in diameter. I asked for a custom made 2mm plate, we´ll see what he can do. Not quite cheap though.



#3 Arthur Brown

Arthur Brown

    General member

  • UKPS Members
  • 2,907 posts

Posted 28 June 2015 - 08:29 PM

I'm really looking for a small plate with only a few cavities, so that I don't need a huge (expensive and heavy) press.



I'd be satisfied with 3mm stars at four up and 8mm stars singly.


http://www.movember.com/uk/home/

Keep mannequins and watermelons away from fireworks..they always get hurt..

#4 JamesB

JamesB

    Member

  • UKPS Members
  • 55 posts

Posted 30 June 2015 - 07:38 AM

Hi Arthur, if you've got a rough schematic of what you're after for a 4 x 3mm plate, I'd be willing to have a play around with some aluminium plate and brass rod when I get a spare minute.



#5 Deano 1

Deano 1

    Pyro Forum Regular

  • UKPS Members
  • 412 posts

Posted 01 July 2015 - 09:57 PM

You're a gent James.


Our saviours : In the ninth century, a team of Chinese alchemists trying to synthesize an "elixir of immortality" from saltpeter, sulfur, realgar, and dried honey instead invented gunpowder.

#6 Peret

Peret

    Pyro Forum Regular

  • UKPS Members
  • 213 posts

Posted 02 July 2015 - 07:50 AM

Smallest I can find is this one, Arthur - 1/4 inch, 6mm, but if you make stars any smaller they burn out before the break expands.




http://pyroworks.us/...star-plate.html



Looks like about 35 quid in your money. Chinese of course. I bought several various size star plates and crossette tools from Pyroworks, all excellent, but their rocket tools are worthless.



#7 dr thrust

dr thrust

    Pyro Forum Top Trump

  • General Public Members
  • PipPipPipPip
  • 1,402 posts

Posted 02 July 2015 - 05:13 PM

Would a syringe type pump not be more suitable, http://www.pyrosocie...ooling/?p=56138
I was able to pump out a " snake" of comp them cut in up to size

#8 Arthur Brown

Arthur Brown

    General member

  • UKPS Members
  • 2,907 posts

Posted 02 July 2015 - 06:48 PM

There are ways of making stars! BUT I'm looking for something that's 100g compliant and makes dry stars that can be fired the same day. I'm also looking for something that can be pressed without a press machine. Screw or lever sounds so much better than a big hydraulic thing. Remember that for 100g of product I'm probably only looking for 50g of stars.


http://www.movember.com/uk/home/

Keep mannequins and watermelons away from fireworks..they always get hurt..

#9 dave

dave

    Pyro Forum Regular

  • UKPS Members
  • 482 posts

Posted 02 July 2015 - 07:53 PM

Arthur,



if you want to press dry powder to a cohesive mass, you may need fairly high forces, at least an arbour press maybe ?

a small ahnd turned tablet press would work but would be expensive



slightly damp composition with a binder you 'll probably be ok.



2mm or 3mm stars.................bit small, what are they for..........special application ?



#10 Arthur Brown

Arthur Brown

    General member

  • UKPS Members
  • 2,907 posts

Posted 02 July 2015 - 10:30 PM

I'm looking for things that could possibly be made under the 100g rule as we currently understand it. A 2" or 2.5" shell may be possible, but would the ingredients be actually makeable?



I'm reckoning that a large manual effort on a lever would permit the dry compaction of a small star without machinery.


http://www.movember.com/uk/home/

Keep mannequins and watermelons away from fireworks..they always get hurt..

#11 dave

dave

    Pyro Forum Regular

  • UKPS Members
  • 482 posts

Posted 03 July 2015 - 07:14 PM

a small arbour press, 1/2 ton is about £30..........not too bad



#12 starseeker

starseeker

    Pyro Forum Regular

  • UKPS Members
  • 856 posts

Posted 03 July 2015 - 08:43 PM

I have made many 100s of 3,8th stars just using a dead blow mallet Arthur , they dry rock hard and its a easy process.



#13 dr thrust

dr thrust

    Pyro Forum Top Trump

  • General Public Members
  • PipPipPipPip
  • 1,402 posts

Posted 03 July 2015 - 10:14 PM

There are ways of making stars! BUT I'm looking for something that's 100g compliant and makes dry stars that can be fired the same day. I'm also looking for something that can be pressed without a press machine. Screw or lever sounds so much better than a big hydraulic thing. Remember that for 100g of product I'm probably only looking for 50g of stars.


Ho I see what your after now, any thoughts on casting resin stars ?, didn't brocks do it commercially with thin squares cast on rubber mats, I found this on comps http://pyrotechnics....ocks patent.pdf

Edited by dr thrust, 03 July 2015 - 10:15 PM.


#14 Arthur Brown

Arthur Brown

    General member

  • UKPS Members
  • 2,907 posts

Posted 03 July 2015 - 11:43 PM

I could make "rubber stars" I'm certain the solvent would evaporate in a few hours, but this rather limits the number of formulations.


http://www.movember.com/uk/home/

Keep mannequins and watermelons away from fireworks..they always get hurt..

#15 danny29186

danny29186

    New Member

  • General Public Members
  • Pip
  • 4 posts

Posted 19 November 2015 - 06:34 PM

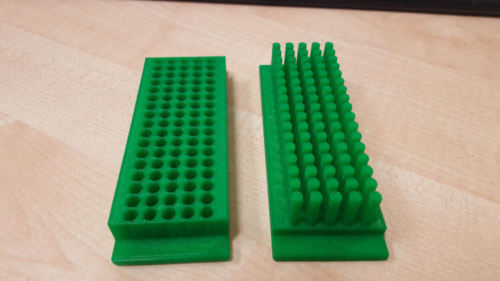

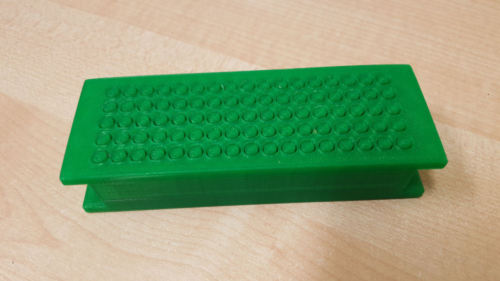

ebay seller - http://www.ebay.co.uk/usr/athelstan66

Attached Thumbnails

  • $_12.JPG
  • 22.JPG
