[dave]

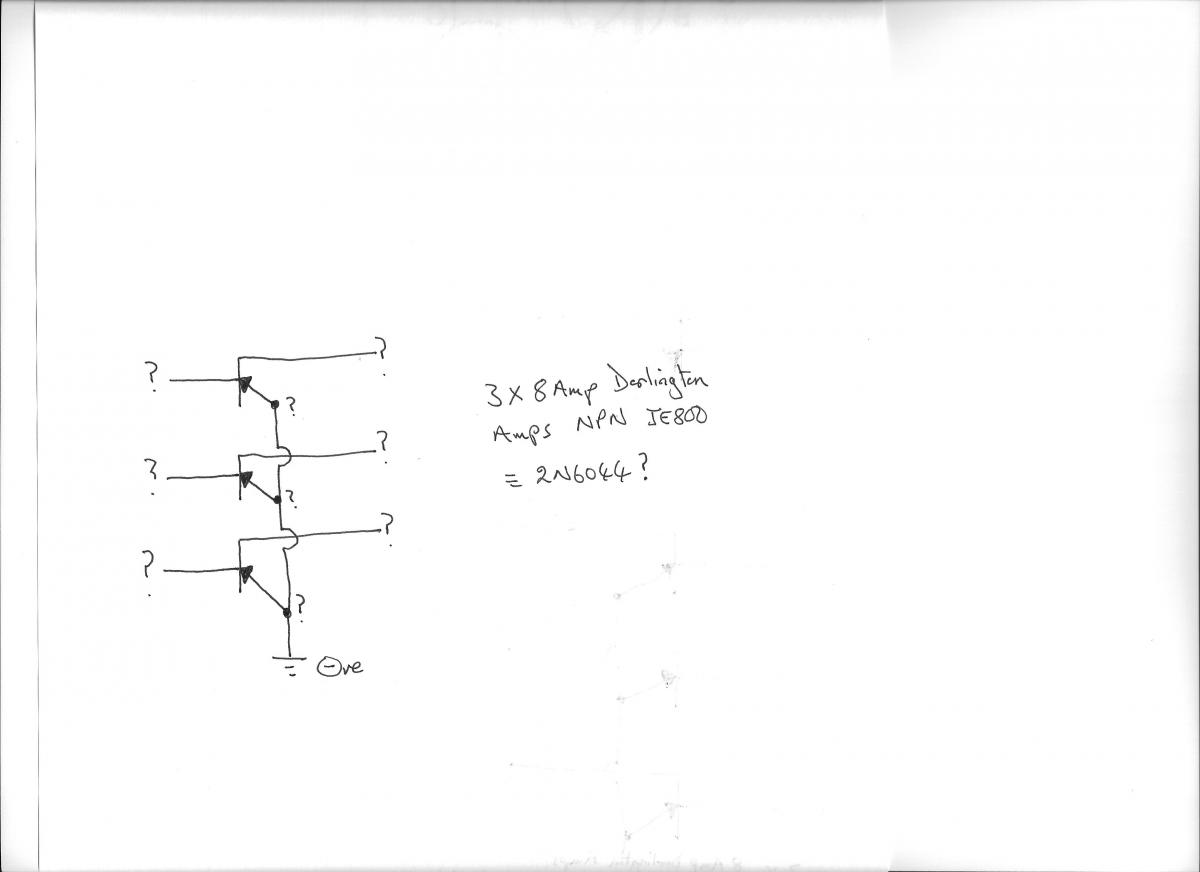

i need a bit of help identifying the base emmiter and collector of the

attached circuit for 3 x 8 amp darlington amps npn je800

i think an equivalent is 2n6044 ?



also, any place in the uk to do one offs on pcbs if i provide the circuit.

its relatively simply just using a 555 timer and a lm4017 decade counter with a few resistors, few caps and leds and  switch



my brain is getting too old for a vero board approach



any help anyone?



dave

Attached Thumbnails

•

[barnsley-mark]

Can't see any attachment or diagram

Sorry, yes I can see it now

Edited by barnsley-mark, 10 February 2013 - 04:34 PM.

[barnsley-mark]

That's just 3 transistors in parallel, a Darlington has a minimum of two in series.

Been trying to include a diagram, but failing badly.

Attached Thumbnails

•

Edited by barnsley-mark, 10 February 2013 - 04:43 PM.

[dave]

my mistake, yes, i only drew 3 instead of 4

whats confusing me is the arrow is pointing in a different direction on your pic ?



if you look at my pdf perhaps you could say which is which by using



left side =

right side =

arrow =



dave

Edited by dave, 10 February 2013 - 05:50 PM.

[barnsley-mark]

Dave, on your sketch, base would be at bottom -ve), E Emitter on left and C Collector on right.
Even with a fourth IC I can't see how your circuit can work as a Darlington because all bases are connected together. Unless you are looking at one transistor supplying all three bases but then there is really no need.

[dave]

cant work out how to attach the full circuit, but



i think youve answered my question



dave

Edited by dave, 10 February 2013 - 06:47 PM.

[Arthur Brown]

Just put the type numbers into google, there are datasheets for both of them free to view or download with pinouts for various packages. Though the device is called a power transistor it is really a darlington and pnp and NPN versions are available.



I'm assuming that your drawing is of three of these PNP darlingtons abrieviated as a PNP transistor

[maxman]

Arthur, JE800 is most likely MJE800 Its A 4amp silicon NPN darlington transistor and diode. European equivs are BD677,BD777,or 2N6038,9 etc



Pin 1 Emitter

Pin 2 Collector 1/2

Pin 3 Base 1



Collector on case



Rod

[dave]

thanks guys, i think i'm ok now.



arthur, the actual circuit specified an 8 amp darlington amp  NPN  JE800



dave

[Arthur Brown]

Seaarch your favoured supplier for 8A Darlington then. CPC certainly have several so RS, Rapid etc will have some and Maplin may have.
