Larger Ball Mill going excess to requirements


  • Please log in to reply
No replies to this topic

#1 cooperman435

cooperman435

    Pyro Forum Top Trump

  • Admin
  • 1,907 posts

Posted 05 July 2013 - 12:23 PM

Hi all, Ive a large ball mill I purchased some time ago that I now no longer need, it wasn't cheap but also not particularly expensive either for what it is.



Ive a feeling it may be over kill for many of us as it was originally intended for an inks and dye testing lab I believe (backed up by the stains on it when I got it too) so can be used to roll many jars at once but if anyone is interested please get in contact.

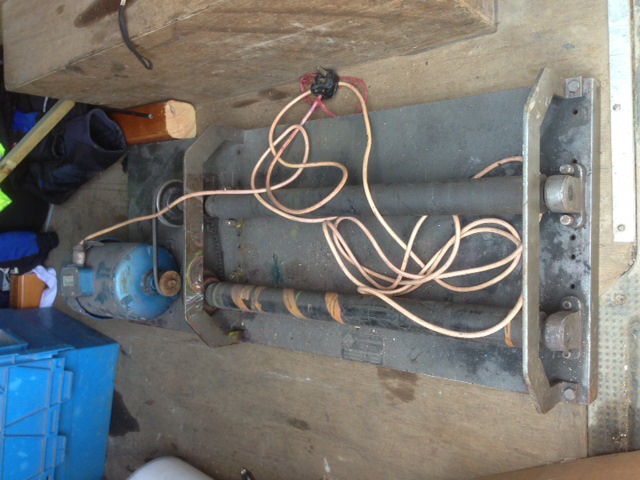

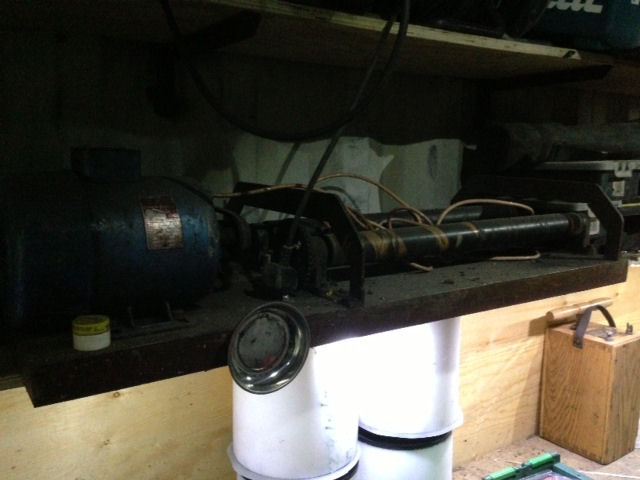

The pictures show the main unit but Ive still to dig out the third roller which then allows you to roll twice as many jars!



Main details:



240v supply

belt driven from the motor to the transfer pulley

chain driven from the transfer pulley to the center roller

three rollers, one driven two free rolling

two outside rollers are moveable (I think the center one is too but please don't quote me on that till I check if it matters to you) to adjust for differing jar diameters

HEAVY steel construction

total length: 1040mm

total width: 400mm

roller useable length: 600mm





photo 2 (6).JPG photo 3 (5).JPG
